SM Mooring Buoys Single Point Mooring Pontoon Marine Floating Buoy
Product Description
Foam mooring buoys are in service for inland waterways and offshore instead of traditional steel mooring buoys.

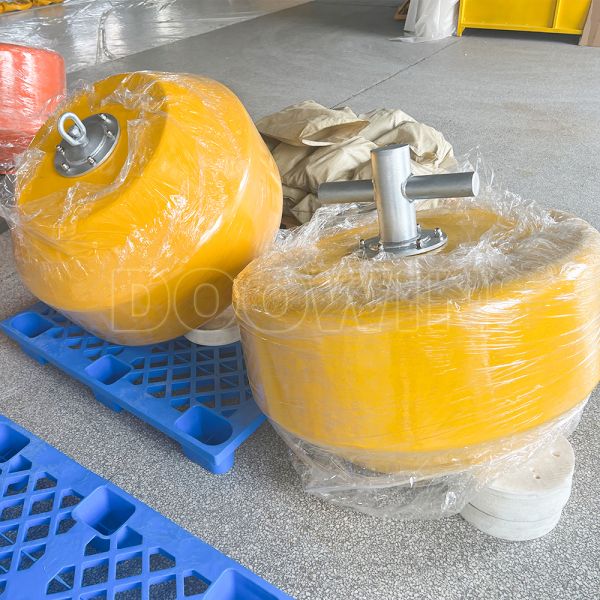

The cylindrical mooring buoy is one kind of representative mooring buoy. The cylindrical mooring buoys can be supplied in chain-through type, or equipped with pad-eye, crucifix, quick release hook, and maker or navigation equipment. Other varieties of end fittings are available to suit every case application. All end fittings are made of galvanized or painted steel to resist seawater corrosion.
Application for commercial mooring buoys are offshore and remote mooring, temporary mooring of vessels in a port, dock or harbour, additional mooring for large vessels on berthing/mooring dolphins and longer term mooring for infrequently used vessels.
- Upper end fittings (various options available)
- Resilient out foam (available upon request)
- Rigid inner foam
- Internal steel core
- Load distribution plates
- Lower end fitting (mooring eye shown)
- Reinforced urethane elastomer skin
This drawing shows a typical specification only. For the specific design of each buoy, please feel free to contact us.
Cylindrical Mooring Buoys Specification
The below table shows the most commonly requested size only. The standard color is yellow and orange.
| Type | Height (mm) | Diameter (mm) | Overall Height (mm) | Weight (kg) | Net Buoyancy (kg) | Net Buoyancy (lbs) |
| CMB1 | 700 | 1500 | 1500 | 161 | 1000 | 2207 |
| CMB3 | 1100 | 2000 | 2200 | 544 | 3000 | 6620 |
| CMB5 | 1500 | 2500 | 2500 | 1104 | 5000 | 11033 |
| CMB8 | 1500 | 2500 | 3100 | 1698 | 8000 | 17652 |
| CMB10 | 1500 | 2500 | 3300 | 1924 | 10000 | 22065 |
| CMB15 | 2000 | 3000 | 3500 | 2886 | 15000 | 33098 |
| CMB20 | 2000 | 3000 | 4000 | 4021 | 20000 | 44131 |
| CMB25 | 2000 | 3000 | 4000 | 5027 | 25000 | 55163 |
| CMB30 | 3000 | 4000 | 4200 | 6650 | 30000 | 66196 |
| Type | Length (mm) | Overall Length (mm) | Diameter (mm) | Weight (kg) | Net Buoyancy (kg) | Net Buoyancy (lbs) |
| PUB-90 | 660 | 1000 | 515 | 42 | 90 | 200 |
| PUB-225 | 910 | 1570 | 690 | 120 | 225 | 500 |
| PUB-400 | 910 | 1570 | 900 | 155 | 400 | 889 |
| PUB-800 | 910 | 1570 | 1150 | 180 | 800 | 1778 |
SM Mooring Buoys
The mooring buoys can be installed with various fittings on the top. And the mooring buoys can be designed to meet different requests. It has the same design as common mooring buoys.
The large mooring tube with 82.5mm ID will accept mooring chain of up to 20mm in diameter. The mooring tube is not molded into the buoy but slides into a tubular section that runs down the center of the buoy enabling the tube to be replaced at any stage during the product's service life.
Customized size are available upon request.
