High Density Deep Sea Buoy 0.3g/cm3-0.7g/cm3 Exploration Buoys With 7000m Depth Resistance

Name: High Density Deep Sea Buoy 03gcm307gcm3 Exploration Buoys With 7000m Depth Resistance
Brand: DOOWIN MARINE
Price: 70 USD

Quality High Density Deep Sea Buoy 0.3g/cm3-0.7g/cm3 Exploration Buoys With 7000m Depth Resistance for sale

Brand Name : DOOWIN MARINE

Model Number : SBM, CSBM

Certification : BC, LR, ABS, CCS

Place of Origin : China

MOQ : 1pc

Price : 70 ~ 3000 $USD

Payment Terms : T/T

Supply Ability : 10pcs/per week

Delivery Time : 2~3 weeks

Packaging Details : Pallet or Plywooden Box

Product Name : Deep Sea Buoy

Material : Syntactic foam

Brand : DOOWIN

Weight : According to different user's water working deepth

Water deepth : Withstands extreme depths up to 7000m without structural failure.

Density range : 0.3g/cm3-0.7g/cm3

Lifespan : 20+ years

Color/Size : As per customer request

Contact Now

Customizable High-density Deep-sea Exploration Buoys With Pressure and Corrosion Resistance Channel Warning Spherical Floats

Product Description

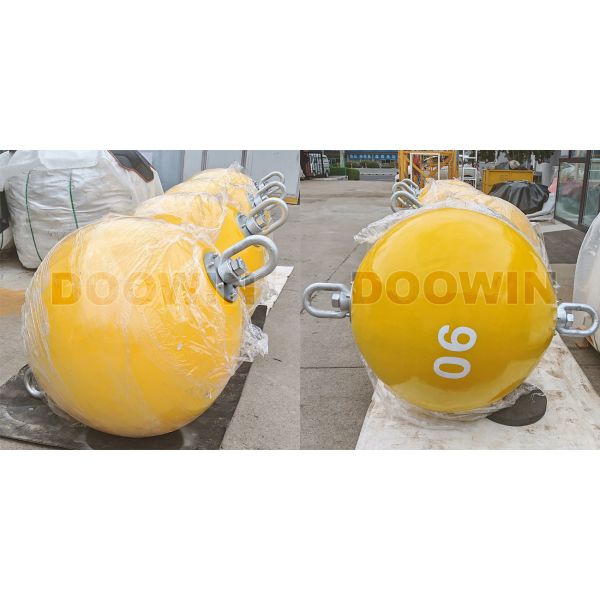

The spherical buoy is a representative pick-up buoy available in spherical or oval shapes. Featuring a vertical steelwork construction through its center, these buoys can be supplied with swivel ends or other custom end fitting designs.

Constructed with resilient closed-cell polyethylene/EVA foam around the inner central steelwork and covered by a polyurethane (PU) outer skin, these buoys offer exceptional durability. The foam core ensures self-fendering and unsinkable performance even when damaged, while the self-colored polyurethane elastomer skin provides resistance to abrasion and UV degradation.

For extreme service environments, the polyurethane elastomer skin can be reinforced with nylon for enhanced tear strength, resulting in a long-lasting, virtually maintenance-free buoy.

High Density Deep Sea Buoy 0.3g/cm3-0.7g/cm3 Exploration Buoys With 7000m Depth Resistance

Key Features

Polyurethane Elastomer Skin - Available in various colors
Self-fendering - High impact absorption capability
End Fitting Options - Various configurations available
Customization - Available in customized sizes and shapes

Construction Details

Inner Foam Core - Unsinkable closed-cell polyethylene/EVA foam core with various densities
Reinforcement Layer - Optional nylon reinforcement for enhanced protection
Outer Skin - UV-resistant, high-visibility polyurethane elastomer skin

Subsea Buoyancy Foam Specifications

Type	Model	Density (g/cm³)	Compression Strength (MPA)	Water Absorption (24 hours)	Submersible Depth (m)
Chemical Foam	CSBM-08	0.08	/	≤5%	Surface
Chemical Foam	CSBM-020	0.20	0.5	≤5%	50
Chemical Foam	CSBM-025	0.25	1	≤5%	100
Chemical Foam	CSBM-030	0.30	2	≤5%	200
Standard Performance	SBM-36	0.36 ± 0.01	≥ 16	≤1%	500
Standard Performance	SBM-38	0.38 ± 0.01	≥ 21	≤1%	800
Standard Performance	SBM-43	0.43 ± 0.02	≥ 24	≤1%	1,000
Standard Performance	SBM-45	0.45 ± 0.02	≥ 28	≤1%	1,500
Standard Performance	SBM-51	0.51 ± 0.02	≥ 45	≤1%	3,000
Standard Performance	SBM-54	0.54 ± 0.02	≥ 60	≤1%	4,000
Standard Performance	SBM-58	0.58 ± 0.02	≥ 75	≤1%	5,000
Standard Performance	SBM-63	0.63 ± 0.02	≥ 90	≤1%	6,000
Standard Performance	SBM-70	0.70 ± 0.02	≥ 145	≤1%	11,000
High Performance	SBM-43H	0.42 ± 0.02	≥ 27	≤1%	1,800
High Performance	SBM-45H	0.45 ± 0.02	≥ 35	≤1%	2,000
High Performance	SBM-48H	0.48 ± 0.02	≥ 42	≤1%	3,000

Spotlight on Production Process

Primary Applications

Deep-sea exploration: Carrier for deep-sea probes and scientific instruments
Ocean monitoring: Water quality and pollution monitoring applications
Channel warning: Navigation safety marking for marine vessels

Industry Applications

Underwater robots: Provides essential buoyancy support
Submersibles: Key component for buoyancy balance
Buoy systems: Maintains stable suspension at predetermined depths
Offshore oil exploration: Used in risers and deepwater pipeline floats
Marine survey systems: ADCPs and seabed-based floats
Marine mining systems: Cable floats and trencher floats
